STEEL WORK APP GOLD
1. FORMING ROLLS
2. IDLING ROLLS
3. SUPPORT ROLLS
4. WORK ROLLS
To repair worn or damaged rolls the following products are recommended Base material Steel:
GOLD 320 /710 (build up or base layer)
GOLD 1015 ( hardfacing &build up layer)
GOLD 770 (CO 6)
(hardfacing layer high temp. Resistant)
Base material Cast iron. (chilled )
GOLD 420 (SMAW.GMAW) buffer/buildup
GOLD 1015 SMAW (hardfacing)
Additional Details
IRON ORE/ SCRAP/ COAL HANDLING EQUIPMENT
BUCKET FOR REMOVAL OF HOT COAL
WEAR ON TEETH AND SIDES
- Protect Teeth and Bucket by using
one of the following electrode - GOLD 750 (HB 63)
GRAB JAWS. FOR SCRAP
WEAR DUE TO IMPACT AND
FRICTION
- PROTECT AND REBUILD WITH
- Gold 730
STRIPPER POINTS
Used to pick up ingots weighing up
to 15 tons at a temperatur of approx. 900 C
- Wear on points due to impact
pressure and heat
Build Up And Protection Of Points
A) Gold 320 For Build Up
B) Gold 1018 For Protection
REPAIR AND PROTECTION OF RAW MATERIAL HANDLING EQUIPMENT
CRANE CONSTRUCTION
- Gold 220
RAILS
- Gold 320
GRAB BUCKETS
PROTECTION .- GOLD 730
- GOLD 750 (HRC 58- 60)
- GOLD 760 (HRC ~64 )
- GOLD 320/627
RAIL WHEELS /ROLLER
Wear on wheels due to metal-
metal friction
REBUILDING SMAW
- GOLD 710
PRODUCTS FOR FURNACE AND LADLE REPAIR
Part name: POURING LADLE
Basematerial : Cast iron
Problem : Wear on ladle body and lips due to hot metal erosion.
Solution: Rebuild worn sections with SMAW
Fillermetal: GOLD 420/707 Base material Steel. GMAW WIRE ARCWEL 420 M For repair of cracks on furnace parts use GOLD 320/627
WEAR ON MIXERBLADES /
BLAST FURNACE
high temperature erosion and
abrasion.
PROTECTION by SMAW welding
Rebuild worn sections with GOLD 320/710 Hardface Blades by using the following Electrodes
1) GOLD 1018 / 750 SMAW for
maximum protection
GOLD WELDING ALLOYS FOR REPAIR OF BEARING HOUSINGS
Bearing housings are subject to heavy pressure by the shafts causing wear and thereby loosing efficiency . Such worn bearing housings can be reclaimed by using the MMA or MIG/MAG Welding process.
- CAST IRON BEARING HOUSING
Use GOLD 420
- STEEL BEARING HOUSING
Use GOLD 710
Cost of Weld repair is only approx. 10 % of the cost of a new housing. Lifetime of housing repaired with GOLD 710 increases lifetime.

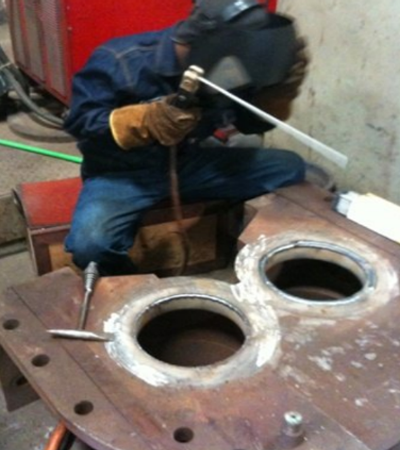

Cast Iron Bearing Housing
