Hardfacing Electrodes (SMAW-MMA ) against Pressure and Impact
For more information request our technical data sheet at office@arcwel.com
Get A Quote View Pdf| PRODUCT GOLD
ARCWEL |
DESCRIPTIONS | TECHNICAL DETAILS | Ø
mm |
APPLICATIONS |
| 710
(E-300) |
Electrode producing semi-hard but machinable deposit. For use in the fol lowing industries: cement, chemical, engineering, mining, steelworks etc. | Hardness :
~ 350 HB Weld Metal : Fe, Cr, Mn, Si, C |
3.2
4.0 |
Rebuilding and sur facing of rails, drive sprockets, gear teeth, drag line chains,
wobblers, wheels etc. |
| 1015
(E-450) |
Especially for rebuilding edges of cut ting tools ,knives, shear blades, drills, punching dies, press tools, forging ham mers, and other parts subjected to met al to metal wear up to 550 C
Weld Deposit is machinable. |
Hardness : ~ 45—50 HRC
Weld Metal Analyse : Cr, V, W, EN 14400 : EZ Fe3 Mat. 1.2567 |
2.5
3.2 |
TOOL & DIE REPAIR AUTOMOTIVE
RECYCLING |
| 730-
(E-600) |
All position general purpose hard fac ing electrode for overlays which resist high impact and pressure. The deposit is tough hard and can also be used with one or two layers of Gold 750 on top. | Hardness : ~ 60HRC Weld Metal Analyse : C, Si, Mn, Cr, Fe
EN 14700 : ~E Fe 3 |
3.2 | Feeding screws
Shear blades Moulds, Pressing and Forging dies |
| 740
(E-355) |
Manganese alloy electrode for overlays which are subjected to extreme impact. The overlay has a strong work harden ing tendency ,is highly crack resistant and the thickness is not limited. | Hardness : ~ 250HB After work hardening ~ 480HB
Weld Metal Analyse : Mn, Cr, Ni, Fe, Si |
3.2
4.0 |

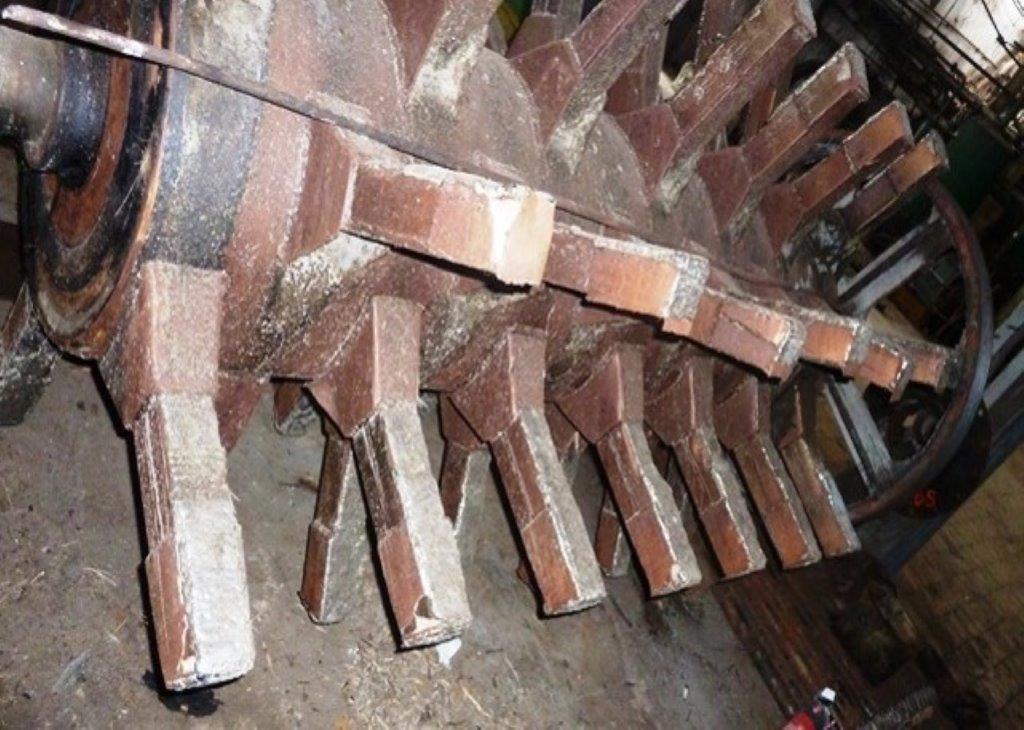

FOR HIGH IMPACT Rail ends ,crossings mill hammers ,
Crusher jaws |
